UNIT FLOORING TYPES



FLOORING diagrams

Options for types of flooring and locations within the unit are illustrated below.

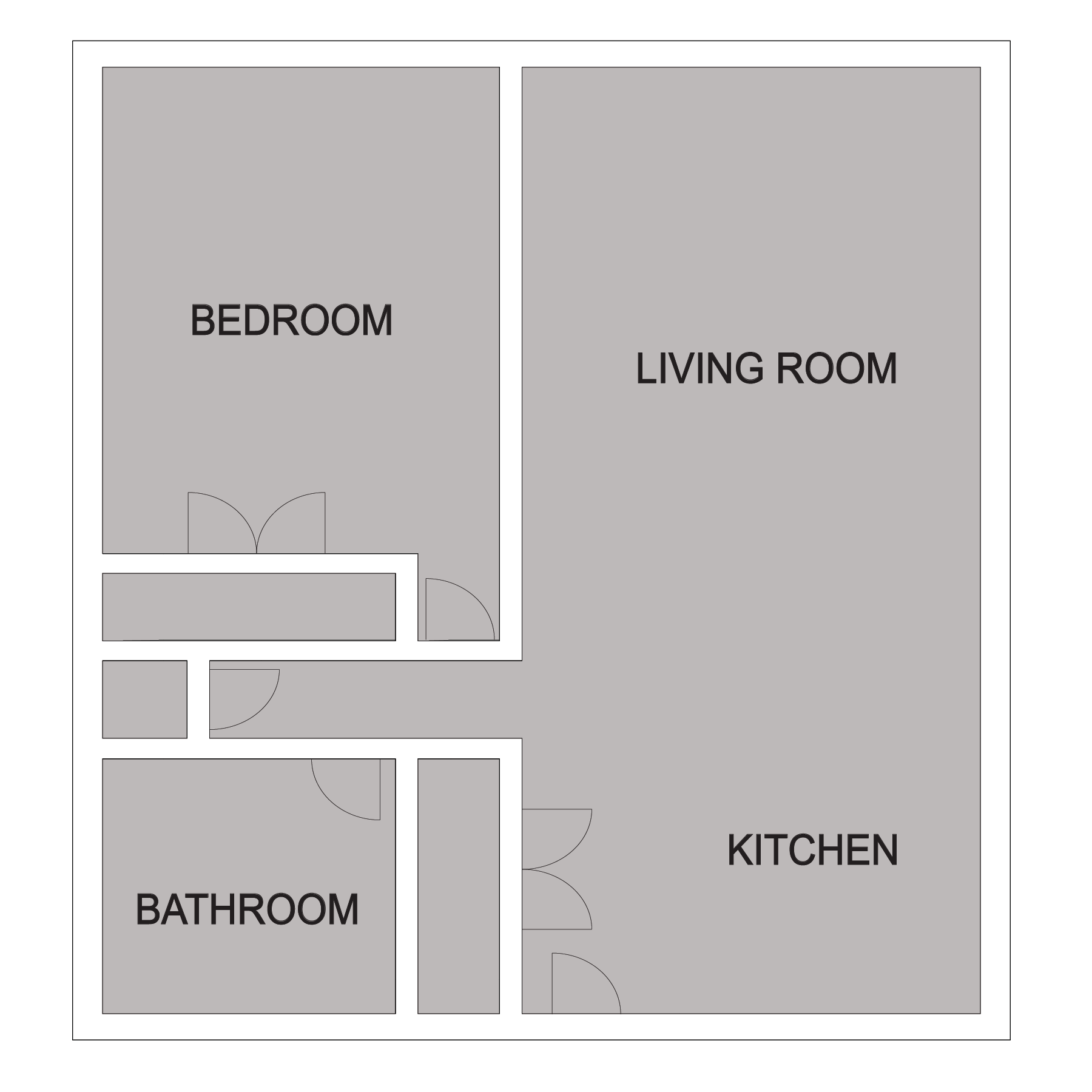

1 Flooring Type Throughout

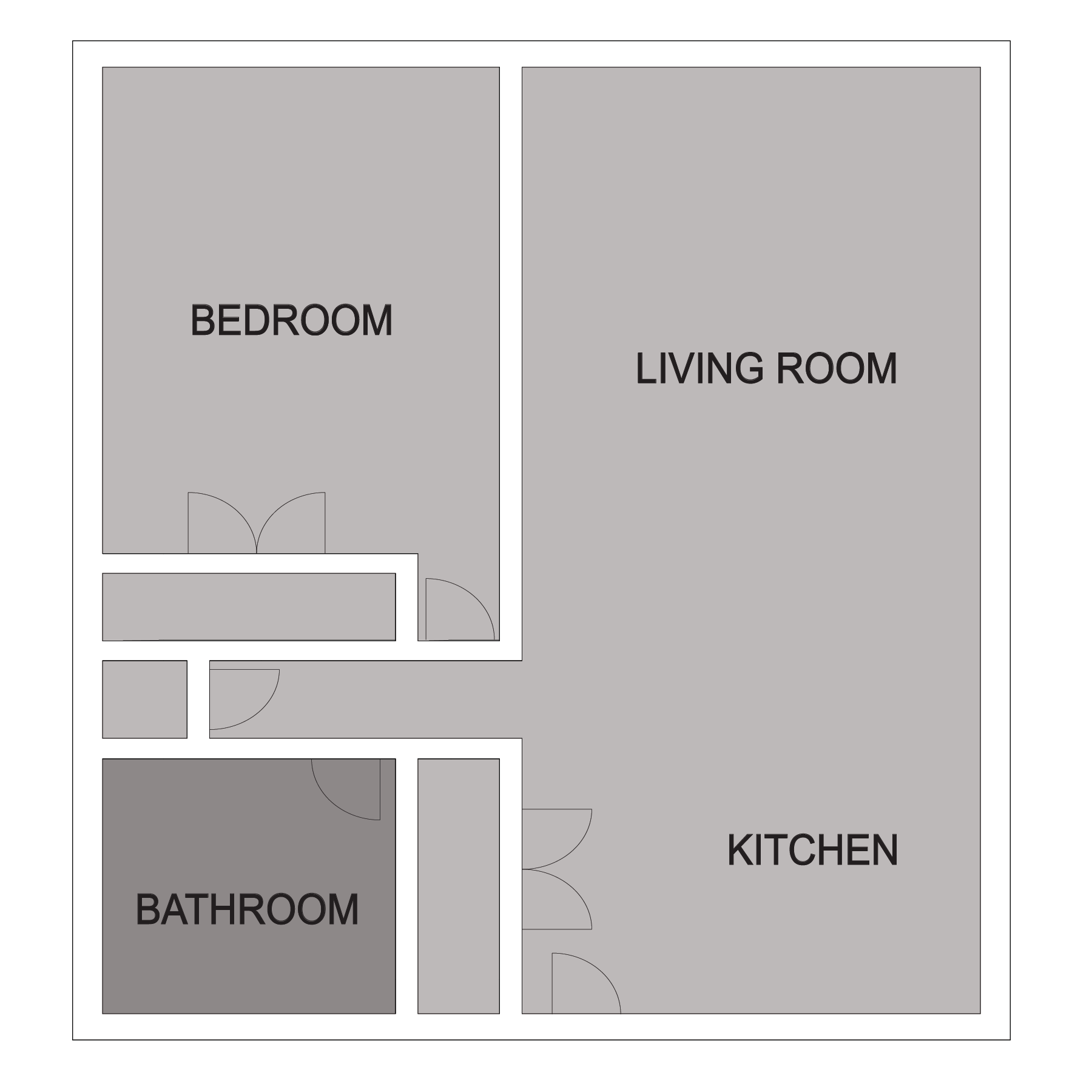

2 Flooring Types
[Bathroom] + [LR/ BR/ Kit]

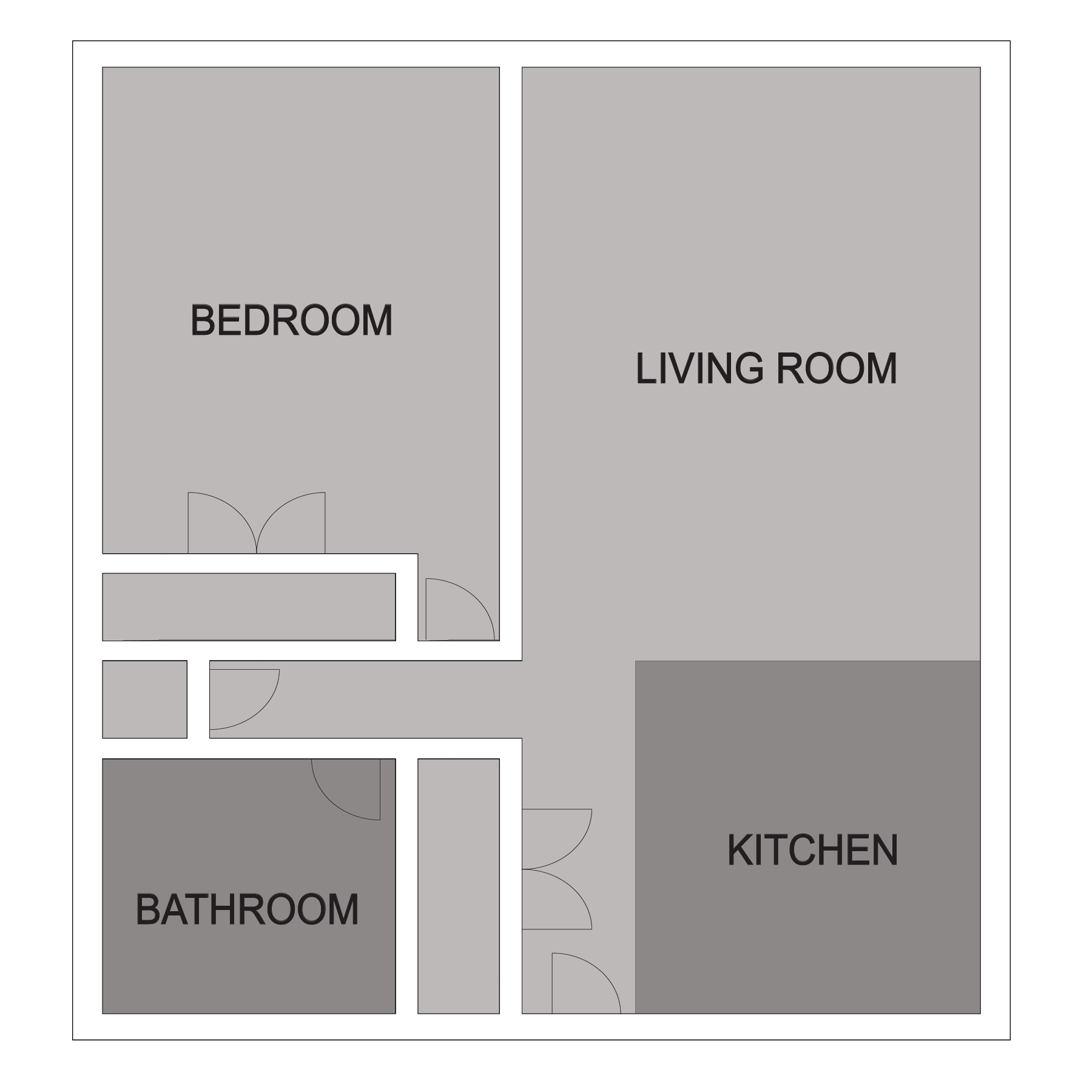

2 Flooring Types
[Bathroom/Kit] + [LR/ BR]



ADDITIONAL INFORMATION:

REQUIRED DETAILS:

For Rehabilitation:
To achieve unit compartmentalization, seal joint from new flooring to existing wall with manufacturer approved joint sealant.
For New Construction:
Follow compartmentalization/ air sealing per architect’s details. If not included in details, highlight for architect.



SUBFLOOR REQUIREMENTS:

Resilient floor installation requires a level subfloor free from cracks, bumps and excessive adhesive residue from former floors. The
product must be installed per the manufacturer’s installation guidelines. Subcontractor must evaluate existing subfloor condition and include associated costs for necessary repairs in bid/quote. Especially important when replacing existing carpeting with resilient flooring (VCT, LVP, LVT, Linoleum Tile, & Sheet Vinyl).
