GENERAL INFORMATION & REQUIRED DETAILS:

  • These products are chosen based on their ability to conserve water, and their availability at HD Supply Solutions.


AERATORS


AERATORS


AERATORS

GENERAL INFORMATION & REQUIRED DETAILS:

  • Finish: Chrome or Stainless.
  • Water Flow:
    • Bathroom Faucets: 0.5 gpm maximum.
    • Kitchen Faucets: 1.5 gpm maximum.
  • Aerator to be flushed yearly or if resident complains of weak flow.
    • Aerators help control water usage, so it is important they are maintained.
    • Removal of aerator will result in higher water bills.

BATHROOM FAUCET AERATOR:


Neoperl
Low Flow Dual Thread Chrome Aerator 0.5 GPM 6Pk

  • 0.5 GPM
  • Chrome
  • Manufacturer Number:
    50 0420 3


If residents are removing aerators, use the following vandal-proof aerator and key:


Neoperl
Dual Thread Aerator 0.5 GPM 6Pk Vandalproof

  • 0.5 GPM
  • Chrome
  • Manufacturer Number:
    50 0020 2


Neoperl
Vandal Proof Aerator Removal Tool

  • Manufacturer Number:
    50 0030 5


KITCHEN FAUCET AERATOR:


Neoperl
Dual Thread Aerator 1.5 GPM 6Pk

  • 1.5 GPM
  • Chrome
  • Manufacturer Number:
    50 0310 3



BATHROOM FAUCETS


BATHROOM FAUCETS


BATHROOM FAUCETS

GENERAL INFORMATION & REQUIRED DETAILS:

  • Finish: Chrome or Stainless.
  • Water Flow: Maximum of 0.5 gpm.
  • Aerator to be flushed yearly or if resident complains of weak flow.
    • Aerators help control water usage, so it is important they are maintained.
    • Removal of aerator will result in higher water bills.
  • Single tap/ lever is preferred.
  • Coordinate faucet selection with sink holes (No holes can be empty).
  • Required: pop-up drain.
  • Faucets in ADA units must be ADA compliant.
  • Faucets in common bathrooms must be ADA compliant.

SAMPLE PRODUCTS (UNIT):

American Standard
Reliant 3 Lavatory Faucet

  • 0.5 GPM @ 60 PSI
  • Chrome
  • Single Handle
  • ADA compliant
  • Manufacturer Number:
    7385050.002

Seasons

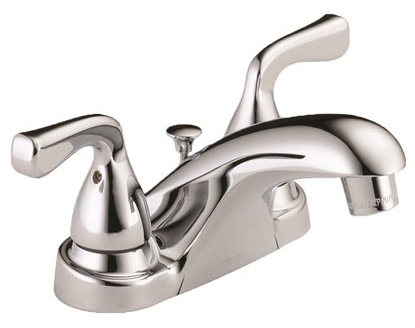

Anchor Point Two-Handle Bath Faucet

0.5 aerator must be installed separately.
  • 1.2 GPM @ 60 PSI
  • Chrome
  • Two Handle
  • ADA compliant
  • Manufacturer Number:
    412395.00

SAMPLE PRODUCTS (COMMON):

Delta
Metering Faucet

  • 0.5 GPM @ 60 PSI
  • Chrome
  • Single Handle
  • ADA compliant
  • Manufacturer Number:
    87T105


KITCHEN FAUCETS


KITCHEN FAUCETS


KITCHEN FAUCETS

GENERAL INFORMATION & REQUIRED DETAILS:

  • Finish: Chrome or Stainless.
  • Water Flow: Maximum of 1.5 gpm.
  • Aerator to be flushed yearly or if resident complains of weak flow.
    • Aerators help control water usage, so it is important they are maintained.
    • Removal of aerator will result in higher water bills.
  • Single tap/ lever is preferred.
  • Coordinate faucet selection with sink holes.
  • Sprayers: Not permitted.
  • Faucets in ADA units must be ADA compliant.
  • Faucets in common bathrooms must be ADA compliant.

SAMPLE PRODUCTS (UNIT + COMMON):

American Standard
Colony Choice Kitchen Faucet

  • 1.5 GPM @ 60 PSI
  • Chrome
  • Single Handle
  • ADA compliant
  • Manufacturer Number:
    4175.700.F15.002

CFG
Cornerstone Kitchen Faucet

  • 1.5 GPM @ 60 PSI
  • Chrome
  • Single Handle
  • ADA compliant
  • Manufacturer Number:
    CA40512


TUB/SHOWER FIXTURES


TUB/SHOWER FIXTURES


tub/shower fixtureS

GENERAL INFORMATION & REQUIRED DETAILS:

  • Water Flow: Maximum of 1.5 gpm and Water Sense Certified.
  • Finish: Chrome coating over brass.
  • Diverter integral to shower valve.

SAMPLE PRODUCTS:

Niagara
Earth Showerhead

  • 1.5 GPM @ 80 PSI
  • Chrome
  • Manufacturer Number:
    N2915CH
Tub Shower Fixture - Niagara Chrome Earth Massage Handheld Shower 1.5 GPM.jpg

Niagara
Earth Massage Showerhead

  • 1.5 GPM @ 80 PSI
  • Chrome
  • Manufacturer Number: N2945CH
  • Use in ADA Units
  • Use for reasonable accommodations


Symmons

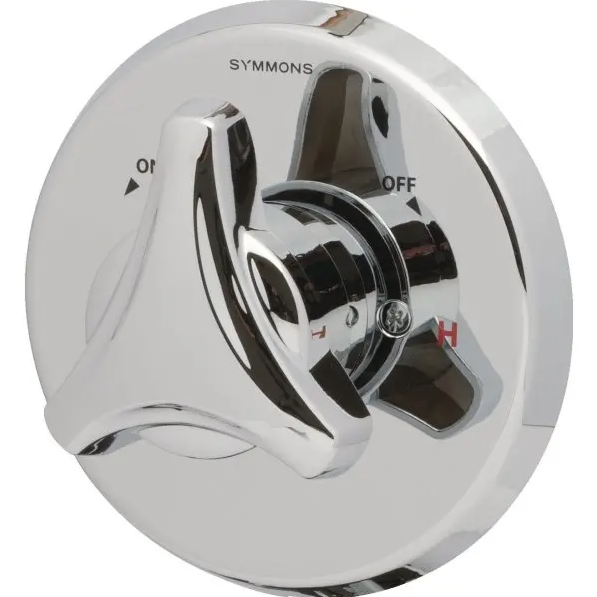

Temptrol Tub-Shower Trim With Valve

  • Chrome
  • Manufacturer Number:
    S-86-2-X

HD Supply
Tub Spout

  • Chrome
  • Manufacturer Number:
    424800

SAMPLE SHOWER VALVE REMODEL PLATES:

CFG

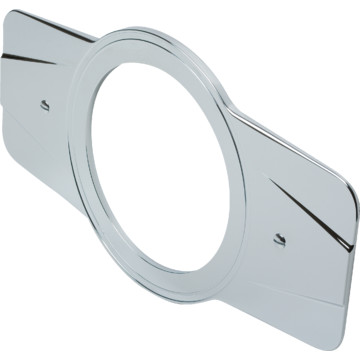

Tub-Shower Chrome Remodel Cover Plate

  • Chrome Finish
  • Converts 2 & 3 handle applications into Single handle
  • 13-1/4" Long x 7-3/16" OD
  • Manufacturer Number:
    40913

SAMPLE SHOWER TRIM REPLACEMENTS:

Symmons
Replacement Temptrol Trim

  • Chrome
  • Manufacturer Number:
    GSYM-1003


TOILETS


TOILETS


toilets

GENERAL INFORMATION & REQUIRED DETAILS:

  • Finish: White.
  • Water Flow: Maximum of 0.86 GPF required.
  • Comfort Height Toilets: Required.
  • Two-Piece Toilets: Preferred.
  • Bowl Type: Elongated Bowl Required.
    • For rehabs: Verify elongated bowl can fit within existing bathroom and maneuverability is not compromised.
  • Note Rough-In Size and if Rear/ Wall Discharge vs. Floor-Mounted (Rehabs only).

SAMPLE PRODUCTS:

Niagara
Stealth Back Outlet

  • Elongated Toilet Bowl
  • ADA compliant
  • Manufacturer Number:
    N7799

Niagara
Stealth Floor Outlet

  • Elongated Toilet Bowl
  • ADA compliant
  • Manufacturer Number:
    N7717

Niagara
Stealth 0.8 GPF Toilet Tank

  • 12" Rough-In
  • Floor Or Back Outlet
  • Manufacturer Number:
    N7714T
Toilet Tank - Niagara Conservation Stealth ADA Button.jpg

Niagara (ADA)
Stealth ADA Button

  • Manufacturer Number:
    C7715-ADA
  • Use in ADA units.


URINALS


URINALS


urinalS

GENERAL INFORMATION & REQUIRED DETAILS:

  • Finish: White Porcelain.
  • Water Flow: Maximum of 0.5 GPF required.
  • Acceptable Manufacturers: American Standard, Toto, Kohler, Gerber, and Seasons.

SAMPLE PRODUCTS:

TOTO
Modern Urinal

  • 0.125 GPF
  • Manufacturer Number:
    UT105U

American Standard
Flushometer Valve Manual Urinal

  • 0.125 GPF
  • Manufacturer Number:
    6045013.002

KITCHEN SINKS


KITCHEN SINKS


kitchen sinks

GENERAL INFORMATION & REQUIRED DETAILS:

  • Finish: Type 302, 18 gauge Stainless Steel.
  • Bowl Number: Double Bowl Preferred.
  • Depth: 8” for standard unit; Maximum of 6.5” in ADA units.
  • Drain Size: 3.5” Minimum.
  • Holes: 3 holes or less, no plugs permitted.
  • Sprayers: Not permitted.
  • Required Mounting Details: Self-rimming.

SAMPLE PRODUCTS:

Moen

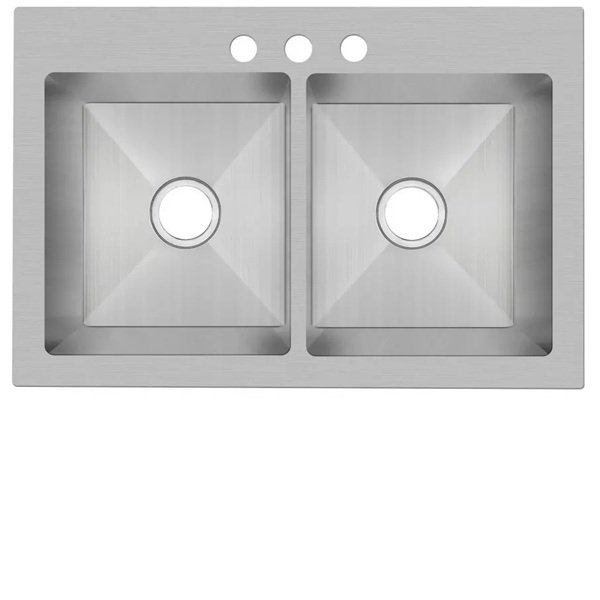

33 x 22" Double Bowl Kitchen Sink

  • Stainless Steel
  • 3-Hole
  • 8" Depth
  • Manufacturer Number:
    G202133

Aspen
33 x 22" Double Bowl Kitchen Sink

  • Stainless Steel
  • 3-Hole
  • 8" Depth
  • Manufacturer Number:
    500872

Dayton
25" x 22" Single Bowl Kitchen Sink

  • Stainless Steel
  • 3 Hole
  • 8" Depth
  • Manufacturer Number:
    DSE125223

*If counter space is limited, consider single bowl sink.



GARBAGE DISPOSALS


GARBAGE DISPOSALS


garbage disposals

GENERAL INFORMATION & REQUIRED DETAILS:

  • New Construction + Rehab: garbage disposals are not permitted.
  • Property Management: remove garbage disposals when they warrant repair or remplacement.

WALL HUNG SINKS


WALL HUNG SINKS


wall hung sinkS

GENERAL INFORMATION & REQUIRED DETAILS:

  • Must be ADA compliant.
  • Finish: White Porcelain.
  • Size: 2 gallon min. capacity.
  • Holes: 3 holes or less, no plugs permitted.
  • Integral Wall Bracket Supports required with assembly.
  • Insulation/padding required for exposed pipes.
  • Pop-up drain required at unit bathroom sinks, but not in common area sinks.
  • All sinks to have overflow drain.

SAMPLE PRODUCTS (UNIT + COMMON):

American Standard
Declyn Wall Hung Lavatory Sink

  • White China
  • Manufacturer Number:
    0321.026

Gerber
Monticello II Wall Hung Lavatory Sink

  • White China
  • Manufacturer Number:
    G0012654

VANITY SINKS


VANITY SINKS


vanity sinkS

GENERAL INFORMATION & REQUIRED DETAILS:

  • Use solid surface vanity tops (sink integral with countertop).
  • Width: 37" min, or match existing.
  • Holes: 3 holes or less, no plugs permitted.
  • Pop-up drain required at bathroom sink.

PREFERRED PRODUCTS (UNIT):


Modular Vanity Tops
Solid White Cultured Marble Vanity Top And Bowl

  • 37W x 22"D
  • 4" Faucet Centers
  • Integrated Backsplash
  • Fits 36W x 21"D Bathroom Vanities
  • Part Number:404384

Swanstone
Solid Surface Lavatory with Integral Sink

  • Color: Bisque (018), or match existing

EXAMPLE VANITY BASE CABINET:


Seasons
36W x 32-1/2H x 21"D White Bath Vanity Base Cabinet

  • 3/4 Solid Wood Face Frame
  • 1/2 Plywood Construction
  • Part Number: 283759


BATHTUBS


BATHTUBS


BATHtubS

GENERAL INFORMATION & REQUIRED DETAILS:

  • Materials: White porcelain enameled steel tub.
  • Size: 60” minimum length, or match existing.
  • Wall Surround: See Tub/Shower Surround Spec.

SAMPLE PRODUCTS:

Bootz
Aloha Bathtub

  • Right Hand Drain
  • Enameled Steel
  • Manufacturer Number:
    011-2364

Bootz
Maui Bathtub

  • Right Hand Drain
  • Enameled Steel
  • Deep Soaker
  • Manufacturer Number:
    011-2340-00


APPROVED TUB RETROFIT PRODUCTS:

To be installed upon resident reasonable request.

Cleancut
Step-In Kit

  • Converts Bathtub To Step-In Shower
  • White
  • Medium Width
  • Manufacturer #:
    S-W-M


ROLL-IN SHOWERS


ROLL-IN SHOWERS


roll-in showerS



GENERAL INFORMATION & REQUIRED DETAILS:

  • Accessories: Folding shower seat and hand-held shower head.
  • Trench Drain: Required at shower threshold.
  • Wall Surround: See Tub/Shower Surround Spec.
  • At senior properties where ADA units are being built (new construction) or rehabbed, as many bathrooms as possible should be converted to roll-in showers.
 Roll in shower with trench drain at threshold

Roll in shower with trench drain at threshold



APPROVED PRODUCTS:

  • Swanstone in Bisque (018).
  • Porcelain 12”x12” tiles in natural or light color.


TRENCH DRAIN DETAIL:

 Trench drain detail in wood frame construction (Source: The Center for Universal Design, NC State University, College of Design. )

Trench drain detail in wood frame construction (Source: The Center for Universal Design, NC State University, College of Design. )

SAMPLE WATER MANAGEMENT PRODUCTS:

At locations where a trench drain installation is not feasible, the follow products are recommended to keep water inside the shower. These collapsible water retainers keep water within the shower, but compress under a wheelchair or foot:

Swan
Collapsible Shower Floor Water Barrier

Best Bath Systems
Rubber WaterStopper Kit


TUB/SHOWER SURROUNDS


TUB/SHOWER SURROUNDS


TUB/SHOWER SURROUNDS

GENERAL INFORMATION & REQUIRED DETAILS:

  • Wall Surround: Solid surface or tiled tub surround.
    • Acceptable manufacturers and finishes:
      • Swanstone in Bisque (018).
      • Porcelain Tile - white 12”x12” tiles.

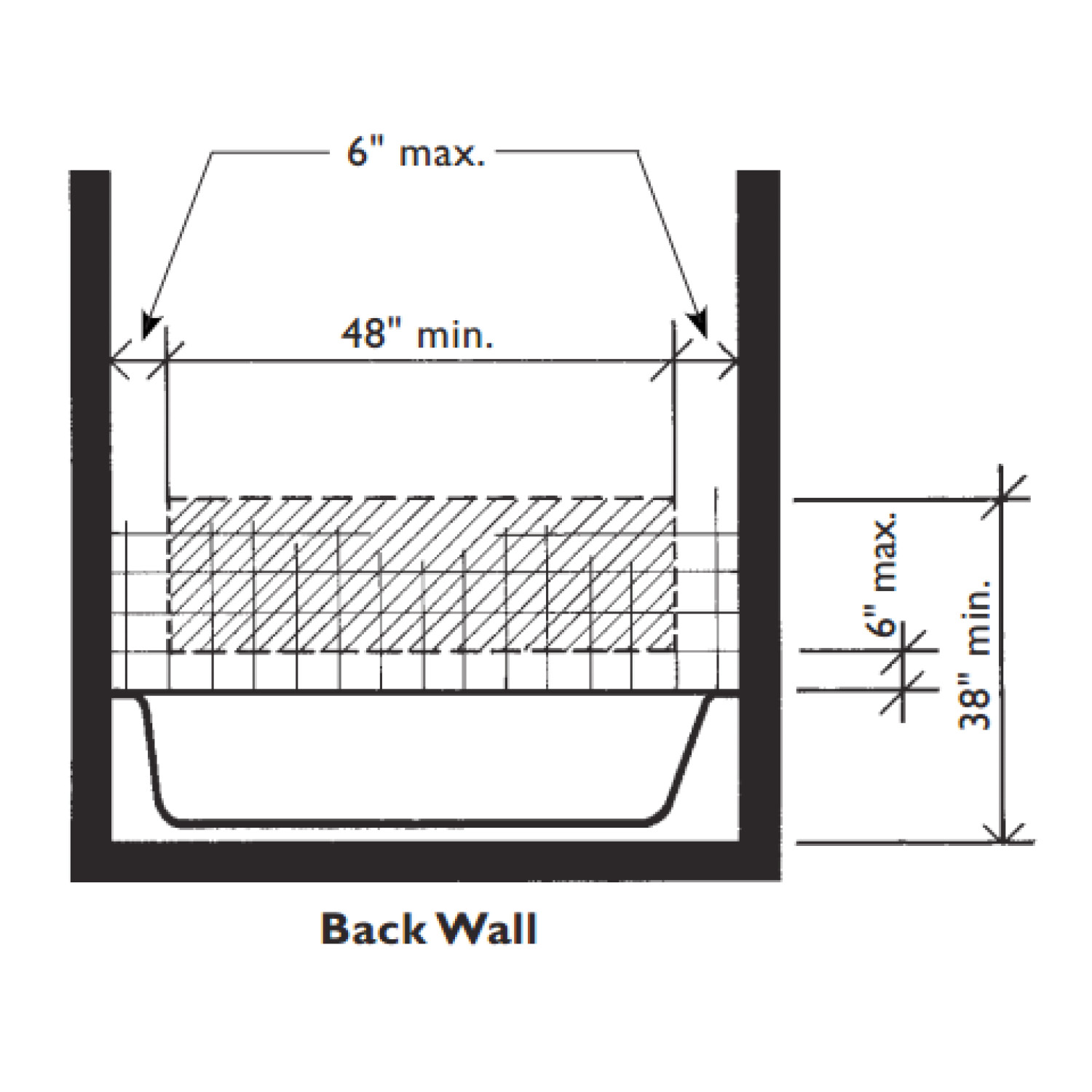

  • Required Details: One of the following details must be incorporated into the shower design to accommodate the introduction of grab bars or other reasonable accommodation requests in the future.
    • Install 3/4” plywood continuously on all shower walls between studs and waterproof backerboard.
      or
    • According to the Fair Housing Act Design Manual, install blocking in the following locations:

SAMPLE PRODUCTS:

Swanstone
3-piece tub surround.

  • Color: Bisque (018), or match existing

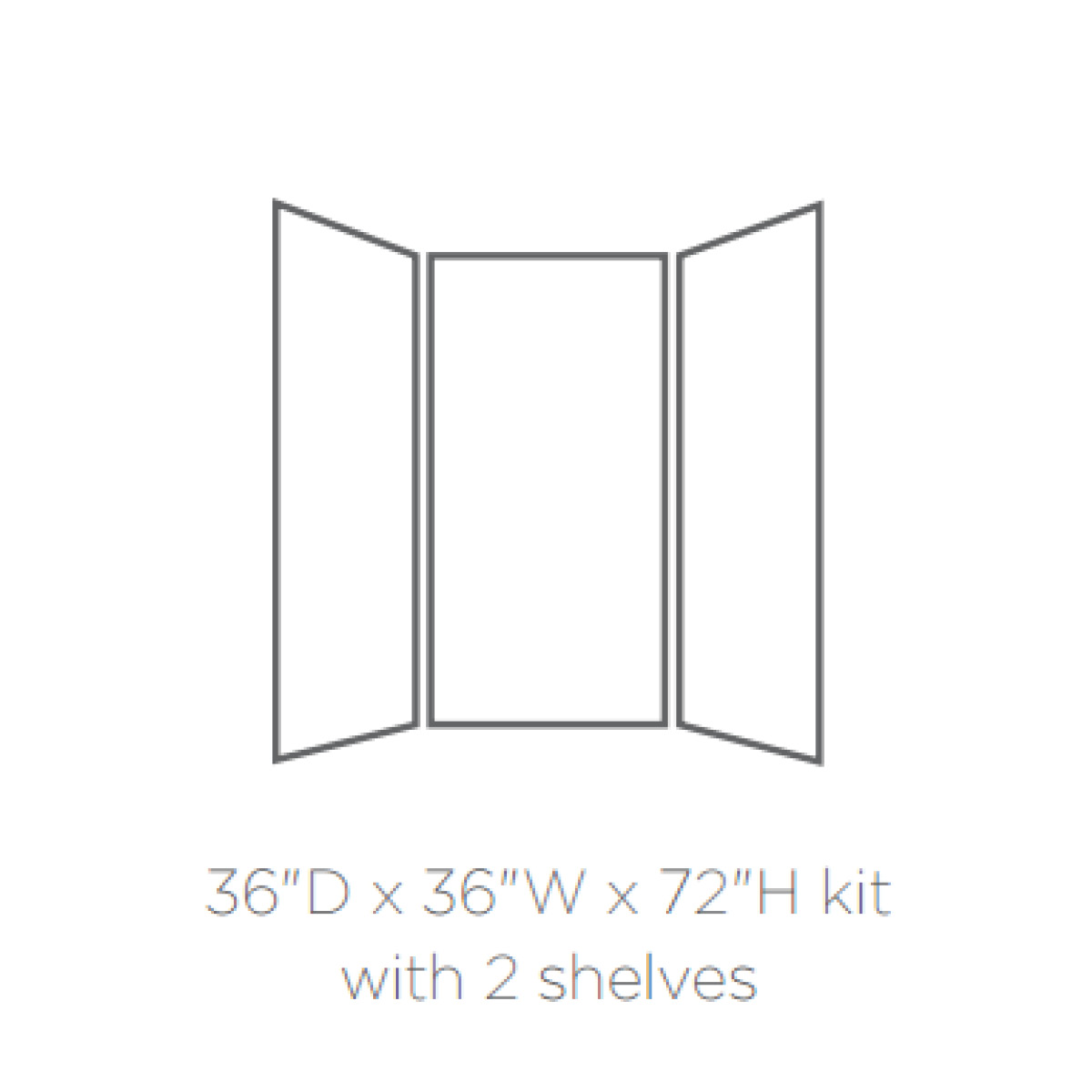

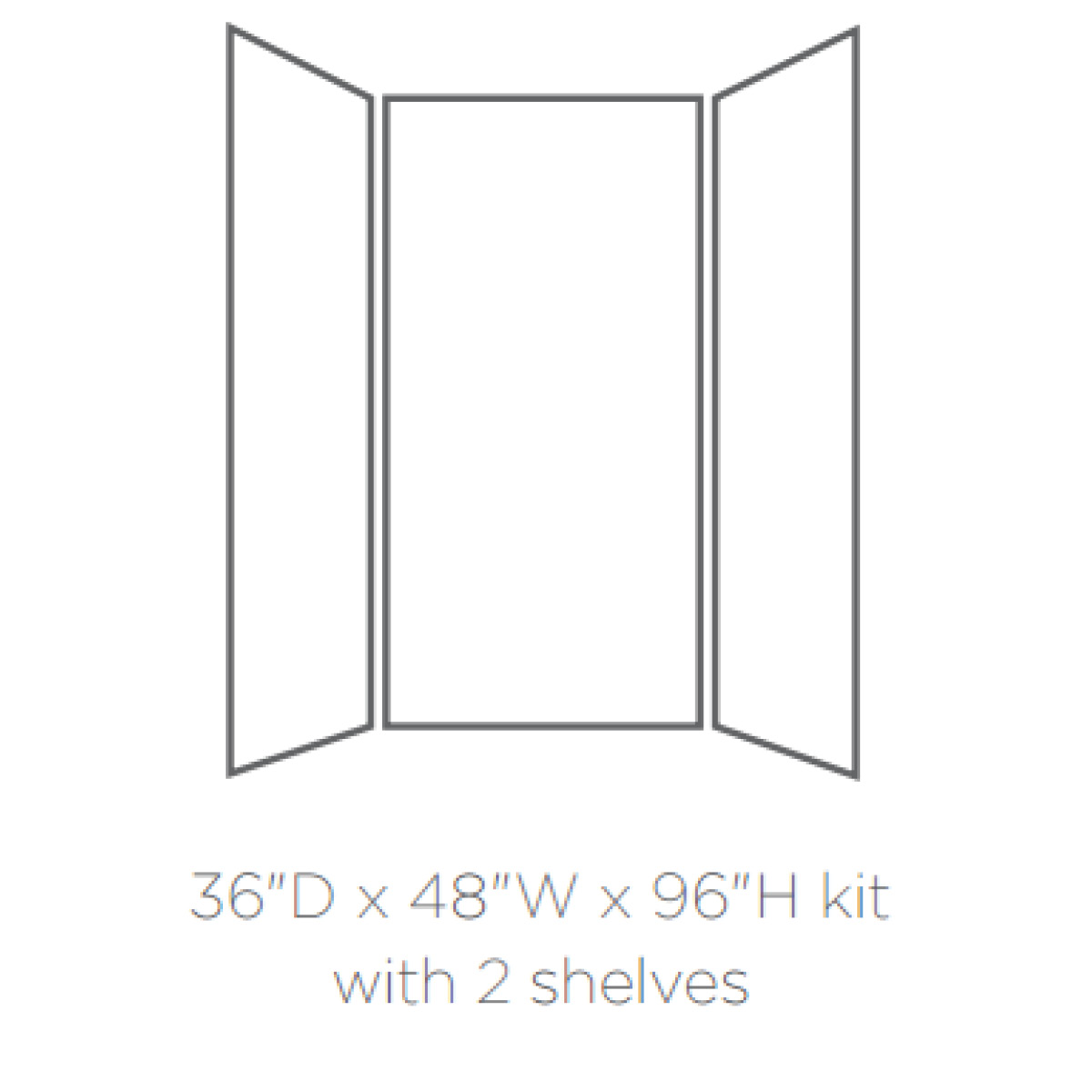

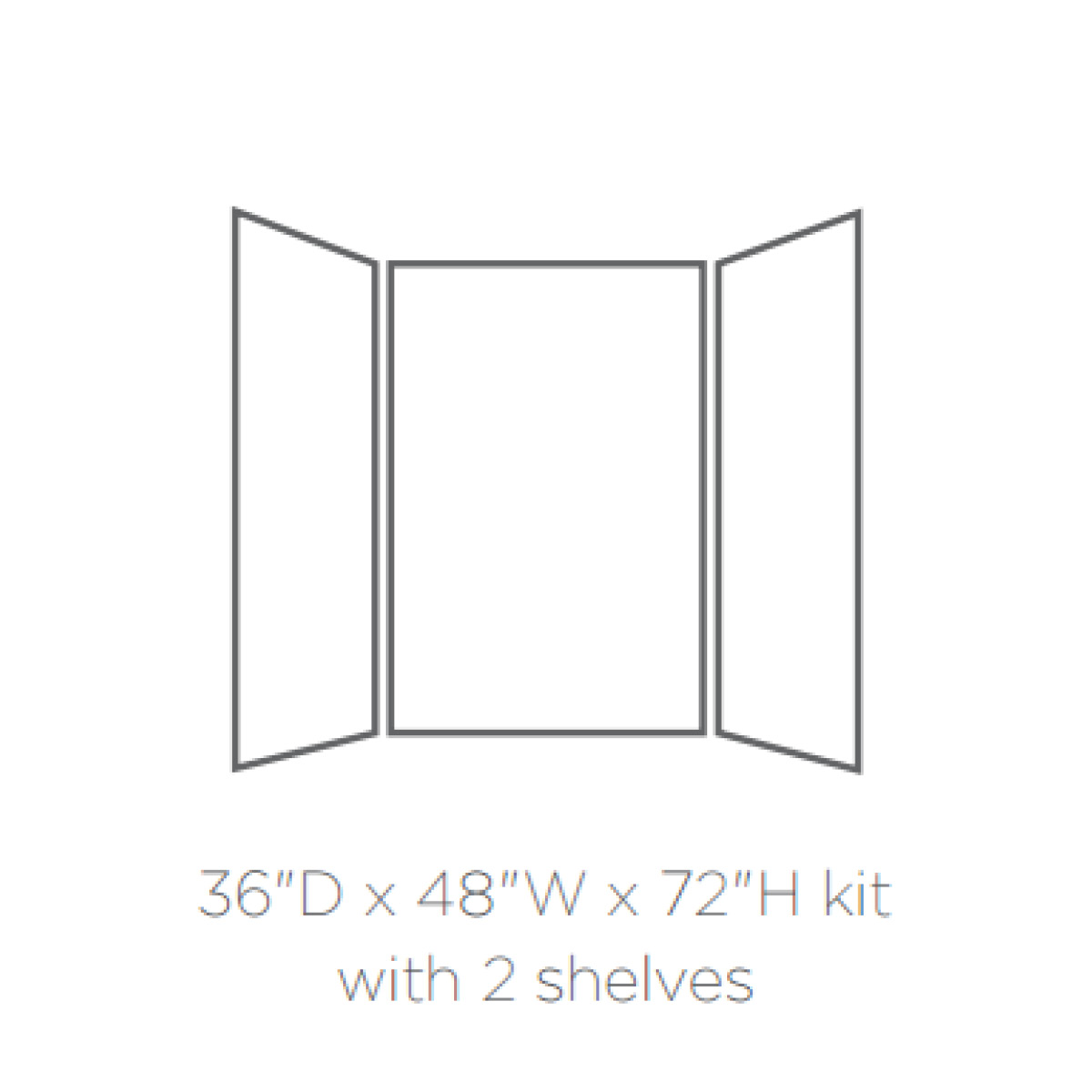

SAMPLE SHOWER KIT SIZES:
