GENERAL INFORMATION


GENERAL INFORMATION


GENERAL INFORMATION & REQUIRED DETAILS:

  • All fixtures can be purchased through HD Supply, unless noted.
  • All lenses must be acrylic; No glass.
  • If replacing fixture in same location use LED w/ same lumens or higher to provide effective lighting.
  • Energy Star rating Required, unless LED fixture.
    • (Note: some LED fixtures are not Energy Star rated).
  • Confirm if Energy Star rated fixtures are a requirement by lender or local building code (ex: Chicago properties require task lighting at kitchen sink).
  • The project parameters (i.e. size of kitchen, integrated bathroom light and fan, etc.) should be established and architect/ engineer must confirm required light levels will be met with approved fixtures provided and required power will be provided.
  • Bulbs should be available at local stores and can be affordably purchased by residents.
  • Check with local utility for lighting rebates.
  • Do not install exterior fixtures that shine light upwards or into residential unit windows.
  • All exterior lighting should be controlled by photocell, not timers.

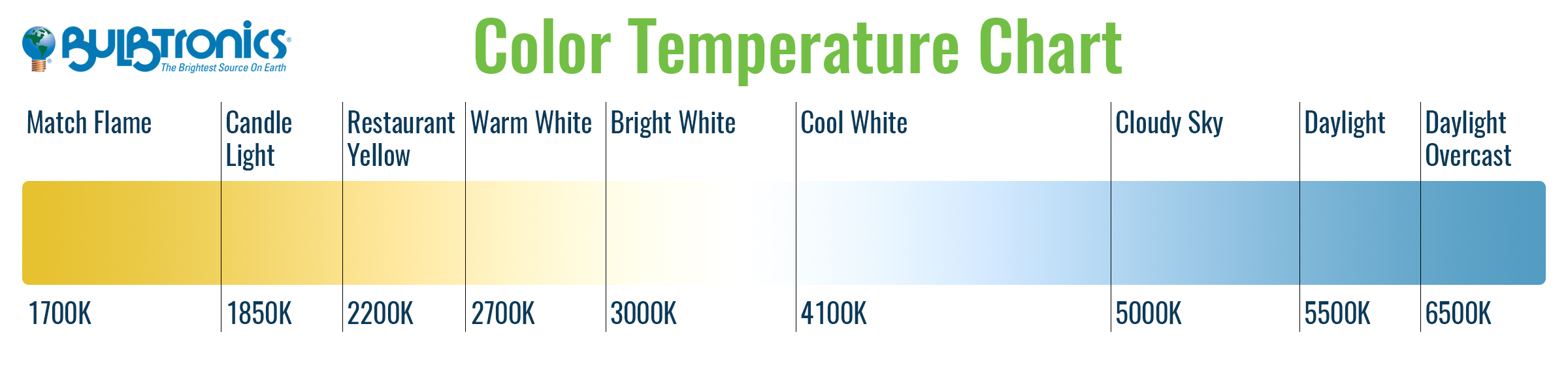

  • All LED fixtures in units to be within 2700-3000 Kelvin color temperature.
    • Fixtures greater than 3000 Kelvin color temperature are acceptable in common areas only.

 © Copyright 2016 Bulbtronics. All Rights Reserved

© Copyright 2016 Bulbtronics. All Rights Reserved


SURFACE MOUNTED - ROUND


SURFACE MOUNTED - ROUND

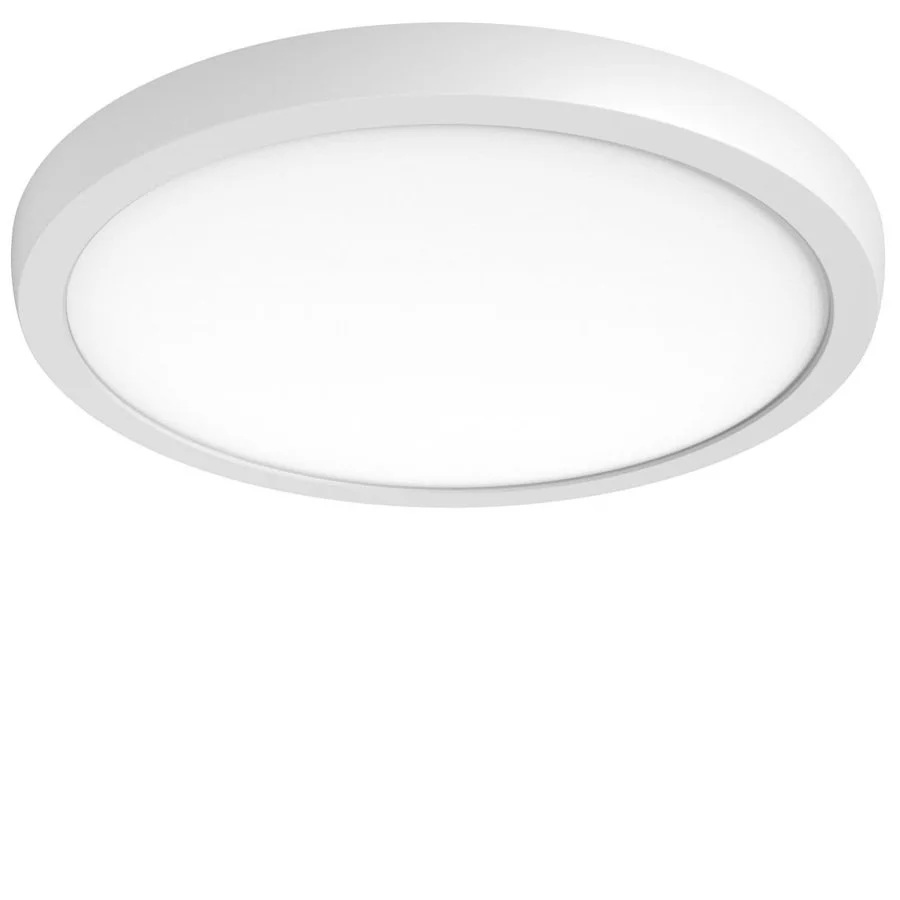

surface mounted ROUND

GENERAL INFORMATION & REQUIRED DETAILS:

APPROVED LOCATIONS:

  • Use in locations with hard (non-dropped) ceiling.
  • In-Unit: All rooms.
  • Common Areas: Offices, Corridors, Community Rooms, and Lobbies.

SAMPLE PRODUCTS:

LED

HD Supply / LED Saturn Carlisle
Wattage/Voltage: 27 watt - 120/277 Volt
Finish: Satin Nickel
Bulb Type: Integrated LED
Kelvin: 3000
Diameter: 14.5"
Manufacturer Number:
CAF142400L30ENSNDB-50

LED

HD Supply / LED Ceiling Fixture
Wattage/Voltage: 17 watt - 120 Volt
Finish: Satin Nickel
Bulb Type: Integrated LED
Kelvin: 2700
Diameter: 13.5"
Manufacturer Number:
LED1102A-35-ACR


SURFACE MOUNTED - LINEAR


SURFACE MOUNTED - LINEAR


SURFACE MOUNTED - LINEAR

GENERAL INFORMATION & REQUIRED DETAILS:

APPROVED LOCATIONS:

  • Use in locations with hard (non-dropped) ceiling.
  • Units: Avoid using in units unless replacing in kind.
    • Linear lights typically are above 3000 Kelvin, and have a very blue/white color.
  • Common Areas: Offices, Corridors, Community Rooms, and Lobbies.

SAMPLE PRODUCTS:

LED

Lithonia Lighting / Futra LED
Wattage/Voltage: 24 / 42 watt - 120 Volt
Finish: Brushed Nickel
Bulb Type: Integrated LED
Kelvin: 4100

2'-0" Length
Manufacturer Number:
FMLFUTL 24 840 BN

4'-0" Length
Manufacturer Number:
FMLFUTL 48 840 BN



RECESSED / CAN


RECESSED / CAN


RECESSED CAN

GENERAL INFORMATION & REQUIRED DETAILS:

APPROVED LOCATIONS:

  • Use in locations with hard (non-dropped) ceiling.
  • In-Unit: All rooms.
  • Common Areas: Offices, Corridors, Community Rooms, and Lobbies.
  • Must use airtight product or sealant if installed in top floor ceiling or in ceilings between units.

SAMPLE PRODUCTS:

LED

Cordelia / Retrofit Trim
Wattage/Voltage: 9 / 11 watt - 120 Volt
Finish: Plastic
Bulb Type: Integrated LED
Kelvin: 2700

4" Diameter Retrofit
Manufacturer Number:
EVL4730MWH27

5" or 6" Diameter Retrofit
Manufacturer Number:
EVL6730MWH27



PENDANT


PENDANT


pendant

GENERAL INFORMATION & REQUIRED DETAILS:

If pendant lighting is requested, please contact Design + Building Performance Dept. with the following information:

  • Location of proposed pendant.
  • If proposed pendant is replacing an existing pendant fixture.

BATH VANITY


BATH VANITY


BATH VANITY

GENERAL INFORMATION & REQUIRED DETAILS:

APPROVED LOCATIONS:

  • In-Unit: Bathroom Vanity, above medicine cabinet or mirror.

SAMPLE PRODUCTS:

LED

HD Supply / LED Vanity
Wattage/Voltage: 17 watt - 120/277 Volt
Finish: Brushed Nickel
Bulb Type: Integrated LED
Kelvin: 3000
Length: 2'-0"
Manufacturer Number:
HDS#326710



WALL SCONCE


WALL SCONCE


WALL SCONCE

GENERAL INFORMATION & REQUIRED DETAILS:

APPROVED LOCATIONS:

  • In-Unit: Hallways.
  • Common Areas: Offices, Corridors, Community Rooms, and Lobbies.

SAMPLE PRODUCTS:

LED

HD Supply / LED Saturn Wall Sconce
Wattage/Voltage: 10 watt - 120 Volt
Finish: Brushed Nickel
Bulb Type: Integrated LED
Kelvin: 3000
Width: 7"
Manufacturer Number:
HDS#326740



CEILING FAN


CEILING FAN


CEILING Fans

GENERAL INFORMATION & REQUIRED DETAILS:

APPROVED LOCATIONS:

  • Units: Living Room, Bedrooms.
  • Common Areas: Offices, Corridors, Community Rooms, Lobbies.

SAMPLE PRODUCTS:

LED

Craftmade / Tempo 44-in. Hugger Ceiling Fan, LED Light Kit
Wattage/Voltage: 16 watt
Finish: Brushed Polished Nickel
Bulb Type: Integrated LED
Dimensions: 44"D
Manufacturer Number:
TMPH44BNK5



CLOSET LIGHTING


CLOSET LIGHTING


CLOSET LIGHTING

GENERAL INFORMATION & REQUIRED DETAILS:

APPROVED LOCATIONS:

  • Units: Closets.
  • Common Areas: Closets.
  • Do not use products that protrude far off ceiling down into the closet. Such products are prone to damage while storing items in high areas of closet.

SAMPLE PRODUCTS:

LED

Philips Lightolier/ Slimsurface
Wattage/Voltage: 14 watt
Finish:  White Trim
Glare-Free Acrylic Diffuser
Bulb Type: Integrated LED
Kelvin: 2700
Dimensions: 7" Round x 5/8" Profile
Manufacturer Number:
S7R827K10WZ10U



DROPPED CEILING LIGHTING


DROPPED CEILING LIGHTING


DROPPED CEILING lighting

(Ceilings with grids and ceiling tiles)

GENERAL INFORMATION & REQUIRED DETAILS:

APPROVED LOCATIONS:

  • Common Areas: Offices, Corridors, Community Rooms, Lobbies, Mechanical Rooms.

SAMPLE PRODUCTS:

LED

Lithonia Lighting / LED 2x2' Recessed
Wattage/Voltage: 39 watt - 120/277 Volt
Finish: White Enameled Steel Base
Prismatic Acrylic Diffuser
Bulb Type: Integrated LED
Kelvin: 3500
Dimensions: 24L x 24W x 3.25"D
Manufacturer Number:
2GTL2 LP835

LED

Lithonia Lighting / LED 2x4' Recessed
Wattage/Voltage: 39 watt - 120/277 Volt
Finish: White Enamel Steel Base
Prismatic Acrylic Diffuser
Bulb Type: Integrated LED
Kelvin: 3500
Dimensions: 48L x 24W x 3.25"D
Manufacturer Number:
2GTL4 LP835


UTILITY LIGHTING


UTILITY LIGHTING


utility lighting

GENERAL INFORMATION & REQUIRED DETAILS:

APPROVED LOCATIONS:

  • Common Areas: Mechanical Rooms, Maintenance Shops, & Other Back-Of-House Spaces.

SAMPLE PRODUCTS:

LED

Lithonia Lighting / LED Wrap Fixture
Wattage/Voltage: 50 watt - 120/277 Volt
Finish: White Enamel Steel Base
Acrylic Prismatic Diffuser
Bulb Type: Integrated LED
Kelvin: 3500
Dimensions: 48L x 10W x 3"D
Manufacturer Number:
LBL4 LP835



EMERGENCY LIGHTING


EMERGENCY LIGHTING


EMERGENCY lighting

GENERAL INFORMATION & REQUIRED DETAILS:

  • Emergency lighting to comply with local Building, Fire, & Egress codes
  • The fixture must include a back-up battery within the fixture, or be powered by the building's back-up system.
  • If replacing in-kind, the fixture has to be located in same location or reviewed by the Fire Department.

SAMPLE PRODUCTS:

LED

Lithonia Lighting / Green LED Exit
Wattage/Voltage: 120/277 Volt
Finish: White Thermoplastic Housing
Bulb Type: Integrated LED
Dimensions: 7-3/16”H x 11-5/8”W x 1-5/8”D
Battery Back Up: 6 Volt Sealed Lead Calcium Battery
Manufacturer Number:
EXG LED EL M6




LED

Lithonia Lighting / Two-Light Emergency Unit
Wattage/Voltage: 120/277 Volt
Finish: White Thermoplastic Housing
Bulb Type: Integrated LED
Dimensions: 4-1/4"H x 10-1/4"W x 3-5/8"D
Battery Backup: NiCad Battery
Manufacturer Number:
ELM2 LED M12

  • Use in stairways & corridors.


LIGHTING CONTROLS


LIGHTING CONTROLS


LIGHTING CONTROLS

GENERAL INFORMATION & REQUIRED DETAILS:

APPROVED LOCATIONS:

  • Common Areas: corridors, public bathrooms, offices, community rooms.

RECOMMENDATIONS:

  • Use occupancy or daylight sensors.
  • Emergency lighting cannot be controlled with daylight or occupancy sensors.
  • All exterior lighting should operate on photocells, no timers.

SAMPLE PRODUCTS:

Lithonia
Passive Infrared Switch Wall Occupancy Sensor
White
Manufacturer Number:
184LCT

HD Supply / Photocell Wall Pack
Wattage/Voltage: 27 watt - 120 Volt
Finish: Bronze Polycarbonate Housing
Frosted Prismatic Acrylic Lens
Bulb Type: Integrated LED
Kelvin: 4100
Dimensions: 10-3/4H x 6-1/4W x 5-1/2"D
Manufacturer Number:
HDS 326111



EXTERIOR WALL MOUNTED


EXTERIOR WALL MOUNTED


EXTERIOR WALL MOUNTED

GENERAL INFORMATION & REQUIRED DETAILS:

APPROVED LOCATIONS:

  • Exterior: at unit and building entry.

SAMPLE PRODUCTS:

LED

HD Supply / Mission LED Wall Fixture w/ Photocell
Wattage/Voltage: 9 watt - 120 Volt
Finish: Black Aluminum Housing
White Acrylic Diffuser
Bulb Type: Integrated LED
Kelvin: 5000
Dimensions: 9-1/2H x 7-3/4W x 4-1/2"D
Manufacturer Number:
BSSW8700L30BK



EXTERIOR CEILING MOUNTED


EXTERIOR CEILING MOUNTED


EXTERIOR CEILING MOUNTED

GENERAL INFORMATION & REQUIRED DETAILS:

APPROVED LOCATIONS:

  • Exterior: at unit and building entries.

SAMPLE PRODUCTS:

exteriorceiling mounted - Lithonia LED Versi Lite 13 Ceiling Fixture, Textured Bronze, 3000k, Wet Loc.jpg

LED

Lithonia / LED Versi Lite
Wattage/Voltage: 28 watt - 120 Volt
Finish: Textured Bronze w/
White Acrylic Diffuser
Bulb Type: Integrated LED
Kelvin: 3000k
Dimensions: 13" Diameter
Manufacturer Number:
FMML 13 830 WL DDBT



EXTERIOR POLE


EXTERIOR POLE


EXTERIOR POLE

GENERAL INFORMATION & REQUIRED DETAILS:

  • If replacing in-kind, use at least the same watt bulb.
  • For new construction electrical engineer should provide lighting plan that provides the appropriate lumens for design.

APPROVED LOCATIONS:

  • Exterior: Parking, Site.

SAMPLE PRODUCTS:

LED

HD Supply / LED Post-Top Lanterns
Wattage/Voltage: 22 watt - 120 Volt
Finish: Compression Molded Noncorrosive Resin
Bulb Type: Integrated LED
Kelvin: 4000k
Dimensions: 13”H x 22-3/8”W x 10-1/16"D
Manufacturer Number:
504439



EXTERIOR FLOOD LIGHTS


EXTERIOR FLOOD LIGHTS


EXTERIOR FLOOD LIGHTS
(wall packs)

GENERAL INFORMATION & REQUIRED DETAILS:

  • If replacing in-kind, use at least the same watt bulb.

APPROVED LOCATIONS:

  • Exterior: typically building mounted.

SAMPLE LED PRODUCTS:

LED

HD Supply / Photocell Wall Pack
Wattage/Voltage: 27 watt - 120 Volt
Finish: Bronze Polycarbonate Housing
Frosted Prismatic Acrylic Lens
Bulb Type: Integrated LED
Kelvin: 4100
Dimensions: 10-3/4H x 6-1/4W x 5-1/2"D
Manufacturer Number:
HDS 326111

LED

Lithonia / LED Wall Pack
Wattage/Voltage: 39 watt - 120/277 Volt
Finish: Bronze Cast Aluminum
Bulb Type: Integrated LED
Dimensions: 15-3/4”H x 16-1/4”W x 8"D
Manufacturer Number:
223859
