air conditioner covers
This PDF was last updated on 04/09/2024. Please redownload if you’re currently working from an older version.
The Basis of Design (BOD) specifies performance criteria and provides sample products for your reference. The sample product noted is not required to be used in new construction projects as long as alternate products meet all the necessary criteria.
product definition:
In locations with permanently installed window or through wall air conditioners, a plastic hard cover should be installed on the interior of the air conditioner unit during the winter months. Air conditioner covers reduce cold air infiltration into the units/ building, save on heating costs, and make units more comfortable. For use on the interior of the unit only.
product ordering information:
Record the size of your existing air conditioners in the diagram:
The following dimensions are required:
Depth of air conditioner and sleeve (A)
Width of air conditioner (B)
Height of air conditioner (C)
Depth of sleeve (D)
This information can then be used by the architect, contractor, product representative, or Project Manager coordinating the installation. Contact manufacturer directly for specific measurements required.

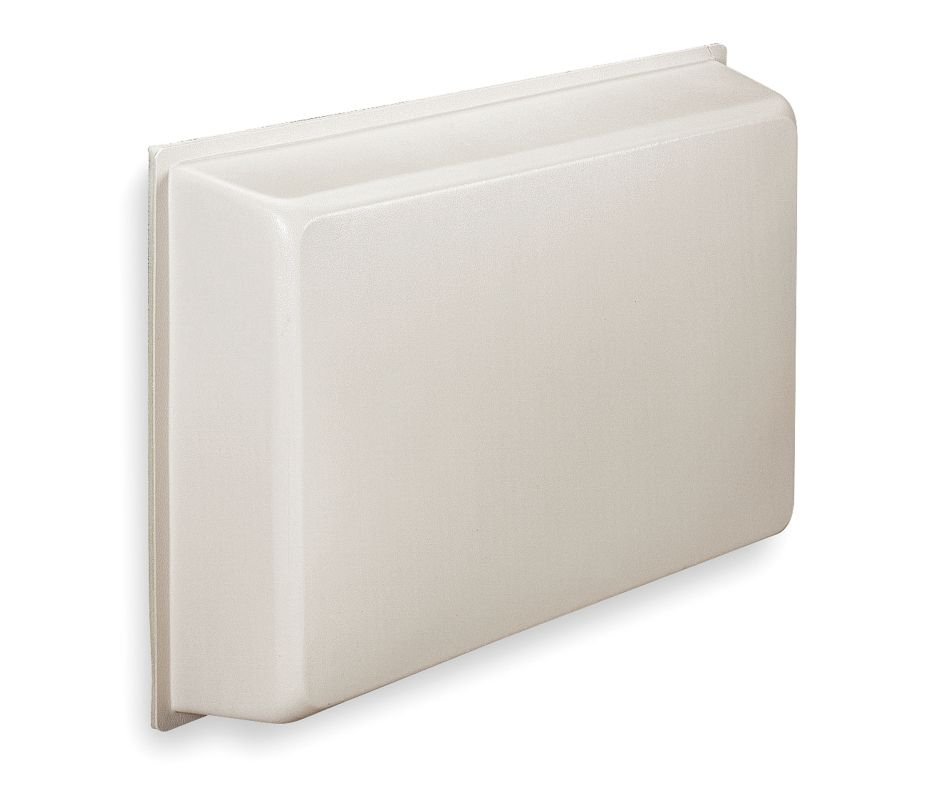

SAMPLE PRODUCT:
Battic Door Energy Conservation Products / Universal Air Conditioner Indoor Cover
(A) Cover Depth: 6”
(B) Cover Width: 30”
(C) Cover Height: 21”
High impact hard cover
R-Value R5
Looking for information on AC Units?
ADDITIONAL INFORMATION:
REQUIRED DETAILS:
At sites where residents provide their own air conditioner, the depth of the cover may vary. If possible, select one depth that will fit all existing depths.
Some minor modifications to the existing wall or the installation of trim may be required to accommodate the air conditioner cover. If recommended product is not conducive to existing conditions, please contact Design + Building Performance Dept. for assistance.
